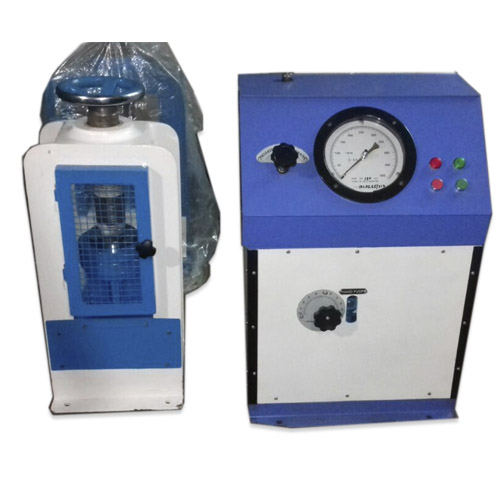

Name : CTM Machine
Usage/Application : TEST BLOCK COMPRESSION STRENGTH TESTING
Driven Type : Electrical Supply Auto
Material : MILD STEEL
Minimum Order Quantity : 1 Number
Brand : Brickvision
Machine Type : Testing Machine
Capacity : 1000, 1500, 2000 KN
Automation Grade : Semi-Automatic
Supply Voltage : 230 or 410 V AC
Brickvision Equipment Compression testing machine is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete. It is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off;
The test data can be processed automatically and the test report can be printed.
Technical specification
|
Detail |
BRI-CTM1000 |
Bri-ctm2000 |
|
Maximum Capacity: |
1000 kN |
2000 kN |
|
Measuring Range |
0-1000 kN |
0-2000 kN |
|
Relative Error |
±1% |
±1% |
|
Platen dimension |
220mm×280 mm |
220mm×280 mm |
|
Max. Vertical clearance between platen |
320 mm |
320 mm |
|
Maximum travel of piston |
40 mm |
40 mm |
|
Diameter of piston |
250 mm |
250 mm |
|
Rated pressure of oil pump |
40 Mpa |
40 Mpa |
|
Power supply |
220VAC 750W |
220VAC 750W |
